Flexible “just-in-time” technology down to a batch size of 1
Companies producing customized plastics machinery, like the company ENGEL, must remain flexible while also ensuring efficiency. The company, which has its headquarters in Austria, has succeeded in realizing higher productivity as well as flexibility. This was done through a combination of a machining center and a flexible manufacturing system, and succeeded despite the diversity of parts and a production batch size of 1.
ENGEL is the largest single-brand manufacturer of injection molding machines worldwide and one of the leading companies in the plastics machinery industry. “Our customers primarily originate in the automotive, packaging, medical technology and electronics industries. Furthermore, we also have a “Technical Molding” division, which is dedicated to technical injection molding of the type used for manufacturing toys, tool handles, chainsaw housings, or similar components”, explains Gerhard Stangl (Dipl.-Ing.), head of the division of production of small and medium-sized machines at ENGEL AUSTRIA GmbH, located in Schwertberg near Linz.
A firm focus on customer requirements
Injection molding machines with a clamping force of up to 500 tons are produced at the production plant. “We specialize in developing and producing machines in accordance with individual customer requirements. This has seen us gradually evolve into a system provider, meaning that we provide complete production cells from one source, which along with injection molding machines also encompasses automation and the logistic periphery, planning tooling projects and processing technologies. Against this backdrop, the complexity of component production has increased enormously as a result of the growing variation in parts”, as Gerhard Stangl explains.
Markus Steinbauer (Dipl.-Ing., FH), production manager, can only agree with this appraisal. “While we still only had a total of nine different types of machines in 2006, today we have more than 30. This makes it evident that we had to react to developments, which we were able to identify early enough, by creating the corresponding production capacities. Ultimately, this means that we have been investing in higher-performance machines and a higher level of automation.”
Automation was always the obvious direction
ENGEL has been able to benefit from a number of fundamental experiences in this field in the past. For example, in 2003, at the production plant in St. Valentin where large machines from 500 to 5,500 tons are built, two Heller MCH 280 type machining centers were purchased and linked up in a Fastems multi-level system (MLS-MD, MLS Medium Duty), producing a load capacity of 1.5 tons.
“Our attention was drawn to the Fastems systems by the machinery manufacturers, so that two Heller MCH 550 machines, also used at the St. Valentin location, could be automated for the second system using this type of solution”, as Markus Steinbauer reports.
Once ENGEL decided over the course of expanding its production capacities to invest in three machines of type StarragHeckert HEC1250 Athletic for the plant in Schwertberg as a replacement for older machine tools, linking up this machining center to a highly-automated system was the obvious way to proceed. As Gerhard Stangl says: “The focus of this investment was firmly on the machinery. We wanted to use the chance to integrate the latest tooling technology into production. We tend to consider automation to be peripheral equipment, and we therefore also arrived at the Fastems systems via StarragHeckert, due to our specific requirements for this project.
The machining center was delivered in mid-2010. Just four weeks beforehand, the multi-level system of type XHD, with a 7.6-ton load capacity, was installed and prepared for interlinking the machinery, whereby the loading stations were set up parallel to installation of the machines.
First experiences gained
“The installation of the overall system took around six months. Nevertheless, we were able to launch production using the first machining center very quickly, gaining our first experience with the system in the process. However, comprehensive groundwork was necessary prior to installing the complete automation system, because we unconditionally wanted to have a system with two levels. While the MLS has an overall height of six meters, the height of the hall is around 4.5 meters, and so we had to lower the floor. For the workers on the systems, this results in the advantage of having ergonomically better access to both the machines as well as the system’s loading and unloading stations”, as Markus Steinbauer explains.
Room for 58 machining pallets

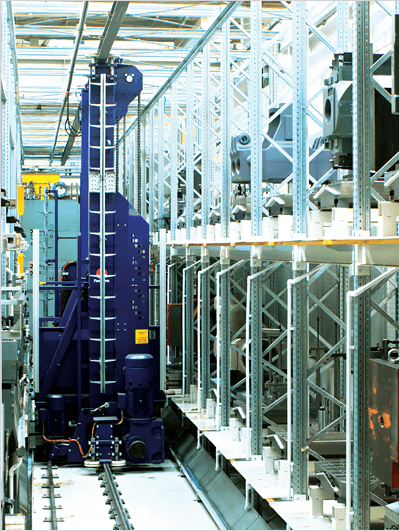

The MLS from Fastems extends over a length of 45 meters, whereby the two system levels provide room for 58 machining pallets (1,250 x 1,000 mm). “The basic pallets are always the same. However, due to the distortion contours of the workpieces, we require four different dimensions for the pallet places, which did not however end up being a big problem using this solution”, Gerhard Stangl says.
Manageable number of fixtures
The clamping devices for the system were developed by the in-house engineering department. “We do a lot of mechanical clamping. Because of the large diversity among parts, we have many billets which feature varying workpiece widths and heights. We have therefore paid special attention to being able to clamp these parts using the appropriate modules, for example special sliding elements. This allows us to keep the corresponding basic fixtures flexible, and the number of fixtures we require therefore remains very manageable” as Gerhard Stangl says.
High productivity in four-shift operation
The entire automation system operates on a four-shift basis, from 10 p.m. on Sunday to 7 p.m. on Saturday. Two operators are in charge of the system during each shift. With the 58 machining pallets in the system, 18,000 production hours per year must be run, distributed among the three machines. Markus Steinbauer: “We also have the additional objective of achieving unmanned production amounting to more than 500 hours per year on the weekends.”
Only one day of lead time
Production starts after receiving an order, being completed “just-in-time” with around one day lead time for assembly. Among other things, ENGEL achieves the high production flexibility required for this by generally only clamping the workpieces just hours before machining. Because production usually involves two clamping processes, reclamping is required. “The components emerge from the system ready-to-use, and are therefore already deburred and marked for further processing – this is all done in the system”, Gerhard Stangl explains. “Of course, production of individual components is also a production step after order receipt. Producing parts efficiently while also flexibly in batch size of 1 is only possible with a correspondingly high level of automation. The decisive prerequisites for this are the corresponding availability and guaranteed supply of blanks, as well as punctual deployment of machining software, operating resources and tools.”
Gerhard Stangl (Dipl.-Ing.), head of the division of production of compact and medium-sized machines (on the left) and Markus Steinbauer (Dipl.-Ing, FH), production manager, at ENGEL AUSTRIA GmbH.
Far-sighted planning leads to success
The tool memory featured by the machining center reserves the capacity for more than 400 tools, with the Fastems master PC taking over management of them, including the tool life monitoring. “Using the new systems, we have a tool turnover of around 20 tools per month. The old machines went through 300 tools per month. This clearly illustrates the savings potential we can achieve with the new complete system”, explains Gerhard Stangl, who views the reason for the success story of the highly-automated system at ENGEL as being largely attributable to good pre-planning:
“The pressure to improve productivity was there, and along with it came the interest in multi-machine operation with assured operational processes, which involved a reorientation even just in terms of the programming. One example of this is our effort to drastically reduce disruptions to measurements or interruptions resulting from the removal of chips over the course of an operational process. Add to this the fact that we also took improvements to the entire system periphery into account in our planning. This allowed us to reduce the programmed machine stops significantly, shorten the non-productive times and therefore improve the overall performance of the system. Compared to the old systems, we have managed to improve operating times by around 25 percent.”
